Products - 840 Belt Drills

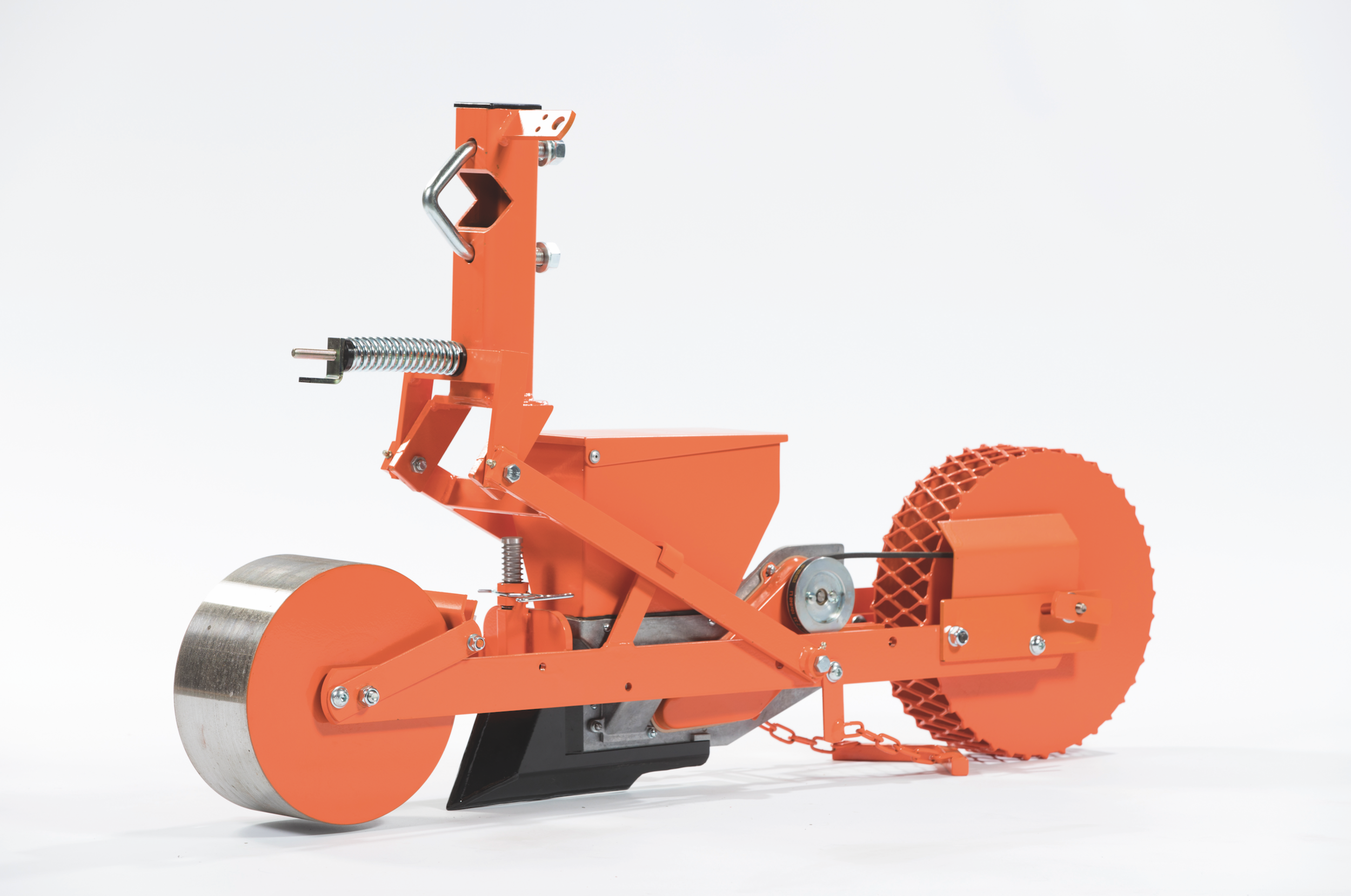

The 840 is designed to fit behind compact and small tractors or ATVs. An ideal machine for the smaller grower or market gardener drive comes from the large diameter rear cage wheel. The four speed pulley drive gives four seed spacings per seed belt.
DISCOVER THE FEATURES OF THE 840
- 4 speed pulley drive
- 5mm depth adjustment increments via coulter stem between 0-50mm
- Driven by large diameter rear cage wheel
- Lightweight design for use with smallest tractors or ATVs
- Floating linkage
- Adjustable rear wheel pressure via spring
- 4 litre seed hopper
- Wheel scrapers
Planting layouts
For the 840 MACHINE LAYOUT POSSIBILITIES & KEY LAYOUT TERMINOLOGY - PLEASE SEE PDF DOWNLOAD (BELOW)
840 - Technical Specification
| Planter Type | Belt |
|---|---|
| Seed Type | NATURAL + PELLETED |
| Multiline Capacity | 1-3 Line |
| Hopper Capacity (L) | 4L |
| Min/Max Seed Size (mm) | 1-15mm |
| Min/Max Number of Rows per Machine | 1-5 |
| Minimum Row Spacing | 200mm |
| Approx Row Unit Weight (kg) | 34kg | Row Unit Length | 1130mm |
| Depth Control Range | Incremental 5mm Steps |
| Coverer Options | Drag |
| Seed Press Wheels Available | NO |
| Row Unit Down Force Adjustment | NO |
| Drive System | Unit Rear Wheel |
| Landwheel Tyres | --- |
| PTO Fan | --- |
| Linkage Category | CAT 1 | Clutch | --- |
FURTHER INFORMATION ON OUR 840 CAN BE FOUND IN OUR PRODUCT GUIDE BELOW
